Autel MP808S-TS Bidirectional Tool

Autel MP808TS is a professional automotive diagnostic scan tool that offers extensive coverage of OE-level diagnostics, 30+ reset and service functions, along with the ability to quickly read and clear OEM enhanced codes for TPMS modules of the majority of makes and models available today.

MP808TS is an excellent combination of Autel MS906 and TS601/608, which has the same TPMS function as MS906TS. It is specially designed to address all TPMS concerns, and is suitable for TPMS sensor activation, relearn, update, and retrofitting. Powered by Android OS, the MP808 features a powerful Cortex-A9 processor, a 3200mAh battery, and a 7-inch touchscreen display that delivers an excellent user experience.

2026 New Version comes with 2 Years Free Update.

 Autel MaxiPro MP808TS Special Features:

• Advanced TPMS diagnostics with DTC description
• TPMS status：complete TPMS health check in one step
• Activate 99.8% of TPMS sensors in the market
• Program AUTEL MX-Sensor
• Extensive Vehicle coverage for more than 80 vehicle models from the US, Asia, and Europe;
• Key programming: rewrite smart keys, replace smart key ECU, replace KNOB IGNITION, reset Key, relearn key.
• Excellent coverage of OE-level diagnostics;
• Provides complete functionality for codes, live data, active test, ECU information, adaptation, matching, etc.
• Intelligent AutoVIN technology identifies vehicles within seconds;
• Software updates with real-time push notifications over Wi-Fi;
• On-demand remote technical support from anywhere;
• With the cloud-based MaxiFix online community, you can access a wide range of diagnostic and repair tips and proven filed fixes;
• Autel Technical Support is available to resolve diagnostic bugs and errors at interactive Data Logging sessions;
• One-stop multitasking solution that enables proper management of workshop operations to ensure that all data files, customer information and vehicle records are organized.
• Autel MaxiPro MP808TS is capable of working on OBD1 vehicles. It is compatible with all OBD2 protocols and is equipped with an optional OBD1 adapter to enable it to work on OBD1 vehicles as well.

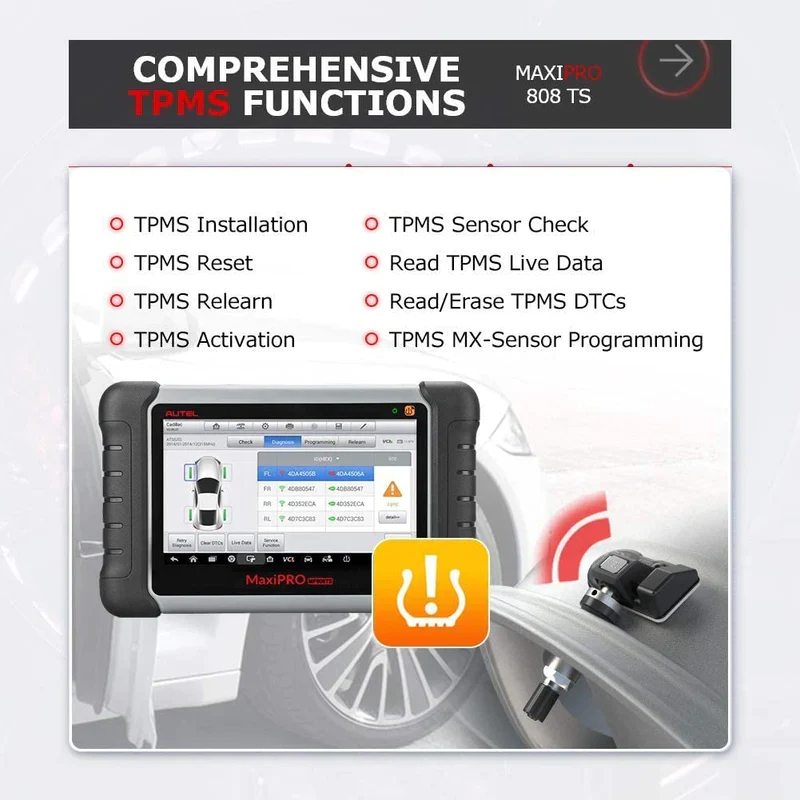

MP808TS OBD II Scanner with Advanced TPMS Functions:

TPMS tools are required to activate each tire pressure sensor in a prescribed sequence so that the TPMS control module can relearn their locations after the sensors on the module or the tires have been changed. It is easy to finish the task within a few steps with the MP808TS scanner, instead of having to advise your customers to take their vehicle to the original car dealer for reprogramming.

TPMS Sensor Programming: Through its embedded antennae, the Autel MaxiPRO MP808TS is able to program and activate 99 % of TPMS sensors in the market without requiring a complicated connection to the TPMS ECU.

TPMS Sensor Learning: Autel MP808TS will act as a bridge between the TPMS sensor and the onboard ECU to enable the ECU to read sensor ID data. The device offers four different learning methods based on the user's requirements. For more information, please refer to the user manual.

TPMS Sensor Retrofitting: For vehicles to be retrofitted with new TPMS modules, the Autel scanner can retrofit a new TPMS module into an ECU, connect the sensors, and automatically input sensor specifications.

Autel MP808TS ECU Coding Function And Bi-directional Control:

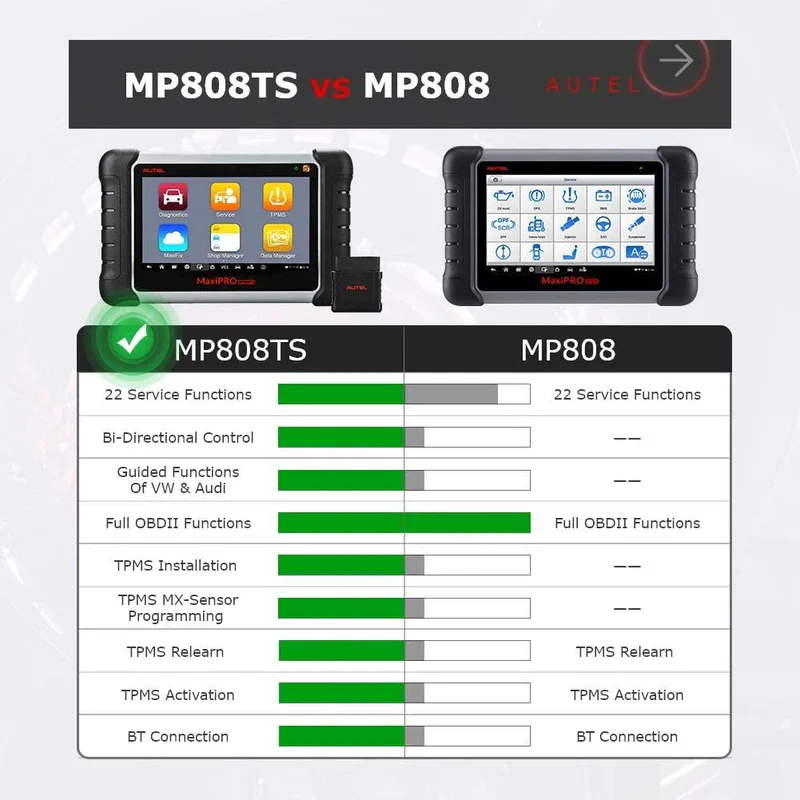

 As an upgrade from the previous Autel MP808, we provide this model MP808TS with the ECU coding function. This makes MP808TS the most cost-effective option since its ECU coding functionality is the same as MS906, but at a lower price.

• When replacing a control unit, a bad actuator, or certain parts, we must perform the coding so that the replaced items will be recognized and stored by the ECU.
• ECU coding enables multiple car systems to recognize one another, allowing actuators to begin to function.
• With ECU coding, some hidden features within vehicles can be activated. These features include changing the interior light, turning on cornering headlights with fog lights, and deactivating buzzing sounds when locking the doors, etc. With this scanner, you can explore all the possibilities of your vehicle.

MP808TS Additional Functions For Mechanics And Auto Repair Shops:

• MaxiFix – online troubleshooting database that provides DTC information for most vehicles and enables you to network with other users.
• AutoVIN - Intelligent AutoVIN technology identifies vehicles within seconds.
• Remote Desk - Allows you to get ad-hoc remote support from Autel support center, your colleagues, or friends, by allowing them to access your tablet diagnostic tool on their computer.
• Shop Manager – assists in managing the daily business of the workshop and improving customer service by managing the workshop information, customer information records and much more.
• Data Manager – allows you to store, review, and print data.

Autel MP808TS Programming Autel MX-Sensor:

1. Copy by Activation – Program the sensor ID retrieved from activated sensor
2. Copy by OBD – Program the sensor ID retrieved from TPMS ECU
3. Copy by Input – Manually input the original sensor ID for programming
4. Auto Create – Create a random ID to program MX-Sensor

Autel MaxiPro MP808TS Supports 13 languages:

• English, Traditional Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian.

Atuel MP808TS With Two Years Free Update:

2024 New Version MP808S-TS 2 Years Free Update and 1 Year Warranty.

MP808TS Specifications:

Recommended Use	Indoor
Operating System	Android™ 4.4.2, KitKat
Processor	Cortex-A9 quad-core processor (1.6 GHz)
Memory	64GB
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Mini USB 2.0 USB 2.0 Wi-Fi HDMI Type A Micro SD card slot (supports up to 32GB)
Sensors	Light sensor for brightness auto adjust
Audio input/output	Input: N/A Output: Beep
Power and Battery	3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery Life	Around 7 hours of continuous use
Battery Charging Input	5 V/1.5 A
Power Consumption	600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp	0 to 55°C(32 to 131°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Operating Humidity	5% - 95% non-condensing
Dimensions(WXHX D)	270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Net Weight	885 g (2.31 lb.)
Protocols	ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code, SAE-J1850 VPW,SAE-J1850PWM, ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN) SAE J2610,GM UART UART Echo Byte Protocol Honda Diag-H Protocol,TP2.0,TP1.6
